- Research Article Spatial analysis between particulate matter and emergency room visits for conjunctivitis and keratitis
- Jung-Youb Lee1, Jung-Won Kim1, Eun-Jung Kim2, Mi-Young Lee1,3, Chang-Wook Nam4, In-Sung Chung1,3
-
Annals of Occupational and Environmental Medicine 2018;30:41.
DOI: https://doi.org/10.1186/s40557-018-0252-x
Published online: June 11, 2018
1Division of Occupational and Environmental Medicine, Keimyung University Dongsan Medical Center, Daegu, South Korea
2Department of Urban Planning, Keimyung University School of Engineering, Daegu, South Korea
3Department of Preventive Medicine, Keimyung University School of Medicine, Daegu, South Korea
4Division of Cardiology, Keimyung University School of Medicine, Daegu, South Korea
• Received: November 13, 2017 • Accepted: May 31, 2018
© The Author(s). 2018
Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
Abstract
-
Background The concentration of particulate matter in the air varies depending on the region because it is lightweight and generated from a variety of sources. To assess the relationship between particulate matter and eye disease, this study analyzes the concentration data obtained from spatial analysis of particulate matter and emergency visit data.
-
Methods The study included 769 residents of Daegu, Korea who had visited an emergency room for the problem of conjunctivitis or keratitis. Concentrations of PM10 and other air pollutants were obtained from the Korean Ministry of the Environment. PM10 concentrations and the number of patients from each of 143 administrative dongs (sub-municipal level administrative units) of the city of Daegu were obtained using spatial analysis. The patient distribution and PM10 concentration were mapped for comparison, and their relationship was examined using scatter plot, regression analysis, and the independent sample t-test.
-
Results The number of patients with conjunctivitis and keratitis was significantly higher in the regions of the top 20% areas than the bottom 20% areas in terms of PM10 concentration. The distribution of PM10 concentration and number of patients was visually similar on the map. The concentration of PM10 and the number of patients showed a dose–response relationship. When the concentrations of other air polluta9nts were controlled for, the numbers of conjunctivitis and keratitis patients were 0.04 per 1000 ER patients and 0.10 per 1000 ER patients, respectively.
-
Conclusion As PM10 is associated with the prevalence of conjunctivitis and keratitis, measures to reduce particulate matter through environmental methods are needed.
-
Electronic supplementary material The online version of this article (10.1186/s40557-018-0252-x) contains supplementary material, which is available to authorized users.
Background
Exposure to particulate matter has been reported to contribute to various illnesses, such as pulmonary disease, cardiovascular disease, cerebrovascular disease, and eye disease [1–9]. Sources of particulate matter vary widely, including road dust, resuspended sediment, fossil fuel burning, sea salt, automobile exhaust gas, wood burning, ships, railroad tracks, biomass burning, industrial processes, and cooking [10]. Consequently, the amount of particulate matter generated varies across regions, and because it moves constantly owing to its lightweight, its concentration shows spatial variation depending on the geographic location, such as urban and rural areas, seashores, inland areas, near highways, communities, and areas with ascending and descending air flow [11]. Thus, research has recently been conducted on the effects of particulate matter on health, considering the spatial variation across different regions rather than studying a single area. A U.S. study investigated the relationship between the amount of PM2.5 exposure calculated based on residence address and morality [12]; a German study examined the association between the amount of PM2.5 exposure, which was calculated based on the distance between the residence and the road, and cognitive disorder status [13]; a study conducted in Los Angeles showed the relationship between PM2.5 concentration and mortality using spatial analysis [14].
Other studies have investigated the relationship between particulate matter and eye disease. It has been reported that high levels of PM10 may increase the number of outpatients with conjunctivitis [15], and that high levels of PM2.5 may cause keratitis [16]. However, little research has been conducted on the relationship between particulate matter and eye disease considering the spatial variation.
Regarding the study area in the present work, the city of Daegu was selected as it has a large geographical range, sufficient amount of exposure to air pollution, and objective air pollution and patient data are available. Daegu is the fourth most populous city of Korea and has the third highest number of vehicles of cities in Korea [17]. Daegu has 13 air quality monitoring stations [18], and its monthly average PM10 concentration obtained based on 1996–2010 data was 62.2 ± 17.3 μg/m3, which was second highest next to Seoul [17]. Therefore, the present study investigates the relationship between the distribution of PM10 and the distribution of outpatients with conjunctivitis and keratitis using spatial analysis considering the geographical variation in Daegu.
Methods
The study was conducted with 769 Daegu residents who has visited the emergency department of Dongsan Medical Center for emergency treatment between June 1, 2006 and December 31, 2014, and were diagnosed with conjunctivitis or keratitis at the time of their visit. The patient diagnosis was based on patient disease information submitted to the National Emergency Medical Center, and conjunctivitis and keratitis were defined as H10.0–10.9 and H16.0–16.9, as specified in the Korean Standard Classification of Diseases (KCD) 7th revision. Patient residence was determined based on the addresses patients provided at the time of their visit to the emergency room, and all addresses were classified into one of 143 administrative dongs in Daegu as of 2005. This study was approved by the Institutional Review Board of the Dongsan Hospital of Keimyung University (IRB No. DSMC 2016–10-003).
PM10 concentrations were calculated using the data from 11 air quality monitoring stations in Daegu, which were installed and operated by the Korean Ministry of the Environment and in which measurements are taken throughout the study period (Fig. 1). The concentration of PM10 was measured using the β-ray absorption method (BAM), an official method used in the air quality monitoring network [19]. The measurement unit was μg/m3 and the measurements were made at the integer level with no decimal points.
In this study, spatial analysis requires the PM10 concentration for each administrative dong. However, there were 143 administrative dongs in Daegu in 2005, while there were only 11 monitoring stations in Daegu to use in the study. Moreover, the stations do not accurately measure the PM10 of the administrative dong in which they are located. Thus, the study used a geographic information system (GIS) to obtain more reliable PM10 concentrations for each administrative dong. First, PM10 concentrations for the areas without stations were calculated using inverse distance weighting (IDW) interpolation and the locations of monitoring stations in Daegu, which were obtained in the form of transverse Mercator coordinates from Daegu Health and Environmental Research Institute. Interpolation is a method used to estimate the values in the intervening space. IDW is known to be a flexible and popular method of interpolation [20]. The distribution of particulate matter is influenced by vertical variations in geography, such as elevation, which indicates how high the ground is above sea level, as well as horizontal variation in geography, such as administrative dongs [21]. Therefore, the present study incorporated the variation in elevation by co-kriging contour data for Daegu for additional interpolation when calculating concentrations of PM10 (Fig. 2). This suggests that, for the areas at horizontally the same distance from a specific station, the concentrations of PM10 are less likely to reflect the values measured at the station when there is more variation in elevation in the terrain between two sites because this increases the actual distance.
The PM10 measurements obtained using the process were rasterized, and the average concentration was obtained for each administrative dong. All spatial analyses were performed using ArcGIS 10.4.1 for desktop.
The data on the monthly average concentration of the four substances from June 2006 to December 2015 were obtained from the Ministry of the Environment. The air pollutant concentrations for each administrative dong to use in spatial analysis were calculated using GIS as in the calculation of PM10 concentrations. The measurement unit was ppm, and measurement was made to three decimal places for SO2, NO2, O3, and to one decimal place for CO.
The analysis of the relationship between the average concentration of PM10 and the distribution of patients in the 143 administrative dongs in Daegu was conducted for each year. The Visit Index was used to determine the distribution of patients by administrative dong, and it was defined as the number of patients with conjunctivitis or keratitis per 1000 visitors to the emergency room of Dongsan Medical Center. An independent sample t-test was performed to determine whether the top 20% and bottom 20% areas in terms of PM10 concentrations significantly differed in prevalence of the diseases. Spatial analysis of mapping the distributions of PM10 and patients was performed using ArcGIS. Scatter plots were also used to determine whether PM10 concentration and the number of patients have a dose–response relationship. The association between PM10 and the number of patients was analyzed using simple linear regression analysis, which examined the effect of PM10 only, and multiple regression analysis, which examined both PM10 and other air pollutants. All statistical analyses were carried out at the 0.05 significance level using IBM SPSS Statistics 23.
Results
The total number of study participants was 769, of whom 191 (24.8%) had conjunctivitis and 578 (75.2%) had keratitis. Regarding gender, 494 (64.2%) were male and 275 (35.8%) were female. Among the age groups divided into 20-year ranges, 268 (34.9%) were aged from 40 to less than 60, and 266 (34.6%) were aged from 20 to less than 40. Regarding the residence district, Seo-gu had most participant residents of 236 (30.7%) followed by Buk-gu with 205 (26.7%). The total number of visitors to the emergency room was 282,017. This number is equal to the sum of all the Visit Index denominators (Table 1).
Table 1
General characteristics of study subjects
Between June 2006 and December 2014, the average PM10 concentration was 48.15 μg/m3, the minimum was 27 μg/m3, and the maximum was 86 μg/m3. The mean concentrations of other air pollutants were 0.005 ppm for SO2, 0.024 ppm for NO2, 0.024 ppm for O3, and 0.5 ppm for CO (Table 2).
The study examined whether the number of patients differed between the areas with high and low mean concentrations of PM10 for the entire study period. In other words, an independent sample t-test was conducted to compare the numbers of patients between the top 20% areas (top 29 administrative dongs) and the bottom 20% areas in terms of PM10 concentrations (bottom 29 administrative dongs) (Table 3). The results showed that the top 20% areas had significantly higher numbers of emergency patients for conjunctivitis (p < 0.01) and keratitis (p < 0.05) than the bottom 20% areas.

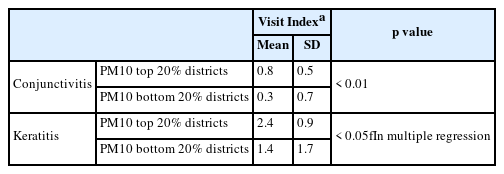

Table 3
Conjunctivitis or keratitis patients number differences between districts which stand for PM10 top 20% levels and districts which stand for PM10 bottom 20% levels from June, 2006 to December, 2014
The distributions of PM10 and patients were mapped using ArcGIS, and compared by year (Figs. 3 and 4, Additional file 1: Figure S1, Additional file 2: Figure S2, Additional file 3: Figure S3, Additional file 4: Figure S4, Additional file 5: Figure S5, Additional file 6: Figure S6). Figs. 3 and 4 show the distributions of PM10 and patients in 2007 and 2013, respectively, which showed relatively clear regional differences during the study period. In 2007, PM10 concentrations were high in the northwestern region and the number of patients was also high in the northwest and some eastern parts, showing similar distributions between PM10 concentrations and patients. In 2013, PM10 concentrations were high in the northwest and some eastern parts, and the numbers of patients with conjunctivitis and keratitis were also high in the northwest, some eastern parts, and some southwestern parts, showing similar distributions between PM10 concentrations and patients.
To determine the dose–response relationship between the PM10 concentration and the number of patients, scatter plots were plotted for each administrative dong. Figure 5 is a scatter plot showing the relationship between PM10 concentration and conjunctivitis, with a trend line with a positive slope. Figure 6 is a scatter plot showing the relationship between PM10 concentration and keratitis, also with a trend line with a positive slope.

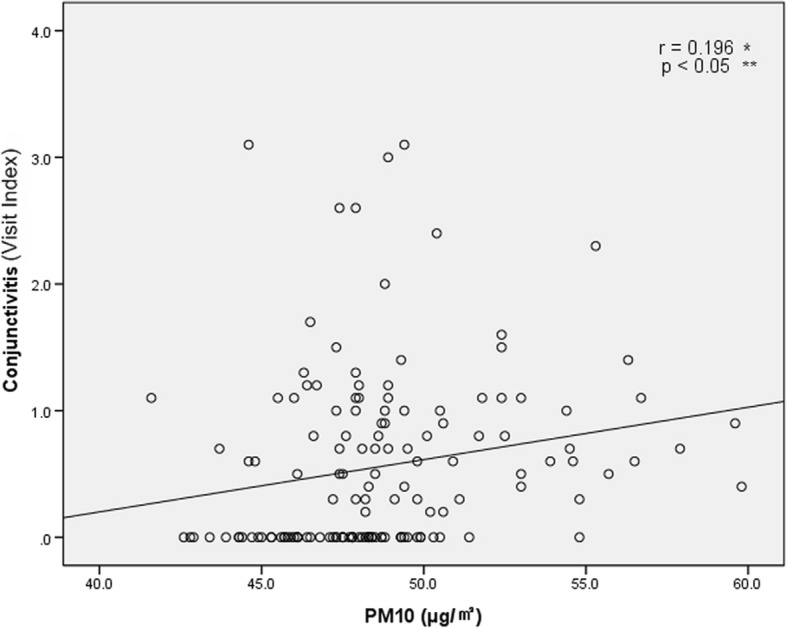

Fig. 5
Dose-response relationship between PM10 concentration and Visit Index of patients with conjunctivitis from January, 2006 to December, 2014. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000. *: Pearson’s correlation coefficient; **: statistical analysis by Pearson’s correlation analysis

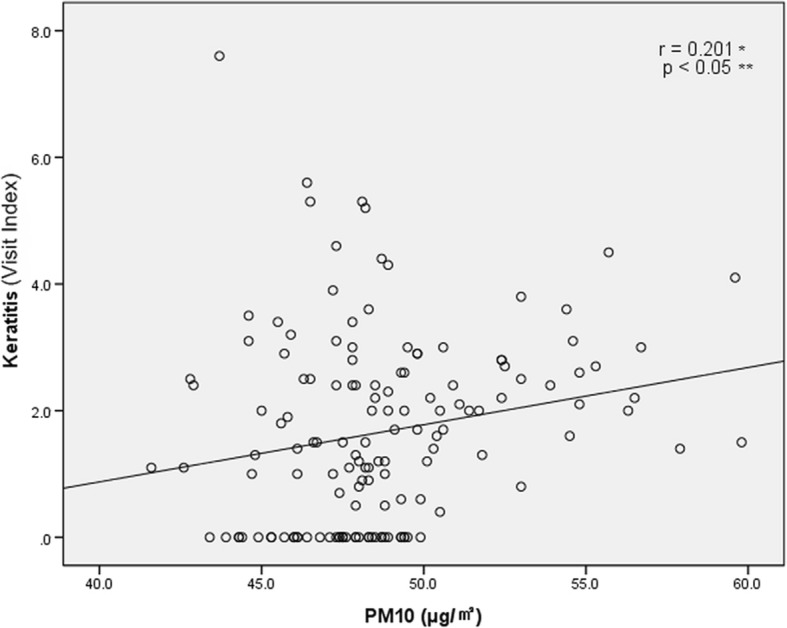

Fig. 6
Dose-response relationship between PM10 concentration and Visit Index of patients with keratitis from January, 2006 to December, 2014. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000. *: Pearson’s correlation coefficient; **: statistical analysis by Pearson’s correlation analysis

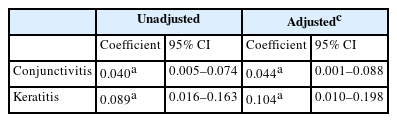

A linear regression analysis was performed to determine the association between the concentration of PM10 and the numbers of conjunctivitis and keratitis patients (Table 4). In a simple linear regression analysis with PM10 only, the number of patients with conjunctivitis increased by 0.04 per 1000 patients in the emergency room and the number of patients with keratitis increased by 0.09 per 1000 patients in the emergency room when PM10 increased by 1 μg/m3, and the differences were statistically significant (p < 0.05). In multiple regression analysis with SO2, NO2, O3, and CO in addition to PM10, the number of patients with conjunctivitis increased by 0.04 per 1000 patients in the emergency room and the number of patients with keratitis increased by 0.10 per 1000 patients in the emergency room when PM10 increased by 1 μg/m3, and the differences were also statistically significant (p < 0.05).
Discussion
This study investigated the relationship between the concentration of PM10 in Daegu and the numbers of conjunctivitis and keratitis patients who visited a university hospital emergency room, and found that the numbers of patients were significantly higher in the top 20% than in the bottom 20% areas in terms of PM10 concentration. The results of spatial analysis showed visual similarity between the distribution of PM10 concentration and the distribution of patients with conjunctivitis and keratitis for certain years during the study period. In addition, dose–response relationships were observed between PM10 concentration and the eye diseases, and the relationships were statistically significant even after controlling for leading gaseous air pollutants related to eye disease – sulfur dioxide (SO2), nitrogen dioxide (NO2), ozone (O3), and carbon monoxide (CO) [22].
Some cases of keratitis due to causes other than air pollutants such as PM10 (for example, photokeratitis from welding [23] and corneal ulcers from chemical burns [24]) may also be included in this study, and this could interfere with the reliability of the results. However, no patient was diagnosed with photokeratitis, so there was no need to consider it. In contrast, 53 patients (6.9%) were diagnosed with a corneal ulcer, so an analysis of keratitis excluding those cases was performed. The difference in the Visit Index between the top 20% districts for PM10 concentration and the bottom 20% districts was 0.9, which is statistically significant. In addition, linear regression showed that the unadjusted coefficient was 0.092 and the adjusted coefficient was 0.103; both are statistically significant (data are not shown). Therefore, the results before and after excluding the corneal ulcer patients were similar. In addition, there are various other causes of corneal ulcer besides chemical burn, which means that the influence of PM10 cannot be excluded in all cases. Therefore, the results of the analysis including the corneal ulcer cases are provided in this study.
Research on the health effects of particulate matter has often used the mean concentration of particulate matter for the entire area where the study participants resided as the particulate matter exposure level of the study participants [25]. However, air pollution assessments using only regional mean concentrations are likely to underestimate the localized increase in incidents of disease due to elevated concentrations near the sources of air pollutants [26, 27]. The health effects may be more pronounced around the source, but the effects may appear to be small if the mean concentration of the entire region is used [14]. Moreover, exposure to air pollution varies spatially within a city [28–31]. Thus, errors owing to classical exposure measurements can bias the results to null [32].
Regions selected for research on the health effects of particulate matter in the past often included metropolitan cities such as Beijing in China [3], Sao Paulo in Brazil [33], Seoul in Korea [34], and Texas in the U.S. [35] because the study findings had greater implications owing to the high population density of the cities, and these cities often show concentrations of particulate matter that are hazardous to health owing to a large concentration of industrial complexes and high traffic volume, thus generating a large amount of particulate matter. The city of Daegu, the study area in this work, also has general characteristics of metropolitan cities as it is one of the most populous cities in Korea, has a high concentration of industrial complexes, such as the Seongseo Industrial Park and the Third Industrial Park, and ranks fifth in terms of the length of road per area. However, Daegu is contrasted with other metropolitan cities in that it is a basin, which reduces air circulation.
Regarding the hospital selected for this study, Dongsan Medical Center is one of four tertiary hospitals in Daegu, and has high accessibility from various regions of the city owing to its location in the central district of Daegu. In addition, the distribution of emergency room visitors by medical specialty area for the hospital was similar to the national statistics based on the Yearbook of Emergency Medicine Statistics published by the National Emergency Medical Center, showing even distribution across specialties, which was another reason for selecting the hospital for this study.
Nucci et al. [4] reported that the incidence of conjunctivitis in pediatric populations was significantly higher in areas with high PM10 concentrations than in areas with low PM10 concentrations; Szyszkowicz et al. [22] reported a significant relationship between PM2.5 concentration and emergency room visits for conjunctivitis in both men (OR = 1.003, 95% CI: 1.000, 1.038) and women (OR = 1.017, 95% CI: 1.003, 1.031); Mimura et al. [36] showed a significant relationship (OR = 9.05) between PM2.5 concentration and allergic conjunctivitis during the period of May through July. In contrast, Gehring et al. [2] found no significant relationship between conjunctivitis and PM10 or PM2.5 concentrations in children and adolescents; Jiaxu et al. [37] found no significant relationship between the number of outpatient for allergic conjunctivitis and PM10 or PM2.5 concentrations.
Aerosol and soil bacteria are some of the major components of particulate matter. They may produce metabolites that affect the microbiome colonies of the ocular surface [38]. Changes in the microbiome of the eye can cause a secondary immunomodulating effect. Although the mechanism of this effect is not clearly known, it seems to involve oxidative stress, pro-inflammation, changes in intracellular proteins, stimulation of autonomic nervous system receptors, and inhibition of normal defense mechanisms [39]. This makes the eye vulnerable and may increase the likelihood of infectious eye diseases. In addition, particulate matter carries sources of infection from the natural environment to the eye. Therefore, particulate matter may directly cause infectious eye diseases. Moreover, these air pollutants accelerate the development of ocular inflammatory disease because they break the homeostasis of the tear film, ocular membrane, ocular surface, and eyelid margin of the eyeballs [22].
Previous studies have mostly shown that particulate matter can cause conjunctivitis. The present study showed that the prevalence of keratitis as well as conjunctivitis is associated with the concentration of PM10. In addition, the study found that the incidence of conjunctivitis and keratitis varies from region to region with the distribution of particulate matter, and is more frequent in areas with higher concentrations of particulate matter.
This study has several features that distinguish it from other studies.
The first distinctive feature is that the study area was the city of Daegu, which is situated in a basin. Daegu shares the characteristics of metropolitan cities, including large population, a large concentration of industrial complexes, and many roads, while having the distinctive feature of being in a basin, which reduces air circulation. In a basin, the surface temperature is often lower than the upper layer, which is called temperature inversion. In this case, the stability of the atmosphere weakens convection, and thus the radiation mist combines with the polluted air to create smog.
The second distinctive feature of this study is the systematic spatial analysis. When studying particles that vary in distribution across different spaces, such as particulate matter, there is a limitation in interpreting the study results accurately without understanding the spatial variation. In the present study, the study area of Daegu was divided into 143 administrative dongs and the concentration of particulate matter was obtained for each administrative dong. In particular, consideration of vertical variation is a large difference of this study from other studies that considered regional variation of particular matter, among which vertical variation was rarely considered [21]. The present study used contour lines considering the fact that the movement of particulate matter varies in actual travel time due to elevations in the terrain (e.g., hills and plane) as well as two-dimensional distances.
The present study also has several limitations.
First, most patients with eye disease visit the hospital through outpatient clinics rather than large hospital emergency rooms. The subjects of this study are expected to have had severe enough symptoms to visit a large hospital emergency room. Therefore, the results of this study can be only applicable to severe cases. Second, individual PM10 exposure concentrations were not measured. Most people spend the day sitting in transportation, working in the workplace, or remaining at home. The characteristics of indoor PM10 sources may be different from those of outdoor PM10 sources. However, one study has shown that indoor and outdoor concentrations of PM10 are highly correlated within individuals [40]. Therefore, ambient PM10 concentrations can be used as an indicator of exposure in studies involving health endpoints such as hospital visits. Third, because the study included only the patients who visited the emergency room of a single hospital as study participants, it was not possible to obtain information on the patients in the entire area of Daegu, and patients may have varied in terms of accessibility and preference regarding hospital choice. Therefore, the study tried to increase the generalizability by selecting the hospital located in the central district of Daegu. In addition, to control for the variation in the populations and hospital accessibility of individual administrative dongs, the Visit Index, which is the proportion of patients with conjunctivitis and keratitis in the total number of patients, instead of the number of the diseases, was used as the outcome variable. Fourth, subgroup analyses according to demographic characteristics, disease subtypes and other underlying diseases were not performed. Such analyses may offer more specific information on the effects of particulate matter because the susceptibility to particulate matter may vary according to gender [22] or age [31], and conjunctivitis and keratitis are classified into various subtypes, such as bacterial, fungal, and allergic types [41]. However, the number of study participants in this study was not sufficient to perform a subgroup analysis. In fact, most patients with conjunctivitis or keratitis rarely visit a hospital because they often monitor the progress at home while keeping their eyes clean or trying over-the-counter drugs [42]. Performing a special analysis on over a hundred administrative dongs require a large number of patients. In this study, the number of eligible study participants was smaller than expected and the spatial analysis was conducted on ocular surface disorders, including both conjunctivitis and keratitis. However, since the study results showed that both conjunctivitis and keratitis were significantly higher in the high PM10 concentration areas than in the low PM10 concentration areas, it is important to examine the pattern of the two diseases together. In addition, considering that both the conjunctiva and the cornea are the main constituents of the ocular surface and that particulate matter influences eye health primarily by breaking the homeostasis of the ocular surface and making it susceptible to infection [43], conjunctivitis and keratitis can be considered as a group of ocular surface disorders, within the context of the effects of particulate matter on health. Moreover, the fact that the study included only patients with conjunctivitis and keratitis who complained of symptoms severe enough to visit the emergency room suggests the possibility that the relationship between particulate matter concentration and eye diseases may be underestimated in this study. Conjunctivitis is more common in patients with allergic diseases such as asthma, allergic rhinitis, and atopic dermatitis [44], and keratitis is more common in diabetic patients [45]. However, there were not enough data on the history of underlying disease to be included in the analysis. Fifth, in the analysis on the spatial distribution of patients with keratitis and conjunctivitis, the spread of infectious eye disease among people was not considered. Some ocular diseases, such as epidemic keratoconjunctivitis and acute hemorrhagic conjunctivitis, are known to be caused by spread among people [46, 47]. However, it is a time-consuming and costly process to collect information on all the contacts between people. Furthermore, since particulate matter causes inflammation of the eyeballs primarily through the eye’s antioxidant defense mechanism, and carries a source of infection itself, the infection with the diseases can be related to exposure to particulate matter. Sixth, the registered addresses of study participants used in the study may be different from where they actually spend most of their time. The data of participants’ administrative dongs used in spatial analysis were obtained from the addresses provided at the time of their emergency room visit, but those in the same administrative dong may have individual differences in terms of the administrative dongs where they are exposed to particulate matter. For example, for a participant who spends most of the day at work located far from his or her residence, it would be more reasonable to use the concentration of particulate matter for the administrative dong for the workplace, rather than the administrative dong of the residence, as the amount of exposure. Even for those who spend most of their time in the administrative dong of their residences, the amount of exposure to particulate matter inevitably varies greatly between those who spend most of their time outdoors, such as children and adolescents, and those who stay mostly indoors, such as the elderly with illnesses. Although this study did not take into account all of these individual characteristics, the study has significance as an ecological study on the population as a whole. Seventh, there may be some errors in the classification of administrative dongs owing to the change of administrative districts during the study period. The study used the 2005 administrative district system with 143 administrative dongs in Daegu to calculate the PM10 concentrations for spatial analysis. However, some of the emergency room patients’ addresses included legal dongs instead of administrative dongs, and some administrative dongs were combined, split, or renamed during the study period. In addition, because a new address system called the street name address was designated as the legal address in July 2011, old addresses and new addresses have been used together. Since 2014, only the street name address has been used, which inevitably created errors. However, the study minimized the errors in the address conversion using Geocoding, which utilizes the coordinate system. Eighth, although we defined patient disease using the specific diagnostic code, the classification may have errors because the exact diagnosis of each case cannot be confirmed without the individual’s medical records [37].
Despite these limitations, this study has significant implications in that it investigated the relationship between PM10 concentration and eye disease using three-dimensional spatial analysis incorporating both distance and elevation, and showed the dose–response relationship as well as the specific role of PM10 concentration with other air pollutants controlled for.
Conclusion
This study showed a spatial relationship between the concentration of PM10 and the emergency room visits of patients with conjunctivitis and keratitis in a region that has both the general characteristics of a metropolitan city and the specific feature of a basin. The findings of this study can be used as basic data for research on the effects of particulate matter on eye disease.
Additional files
Additional file 1:
Figure S1. Spatial distribution of PM10 concentration and Visit Index of patients with conjunctivitis or keratitis in 2008. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000 (JPG 317 kb).
Additional file 2:

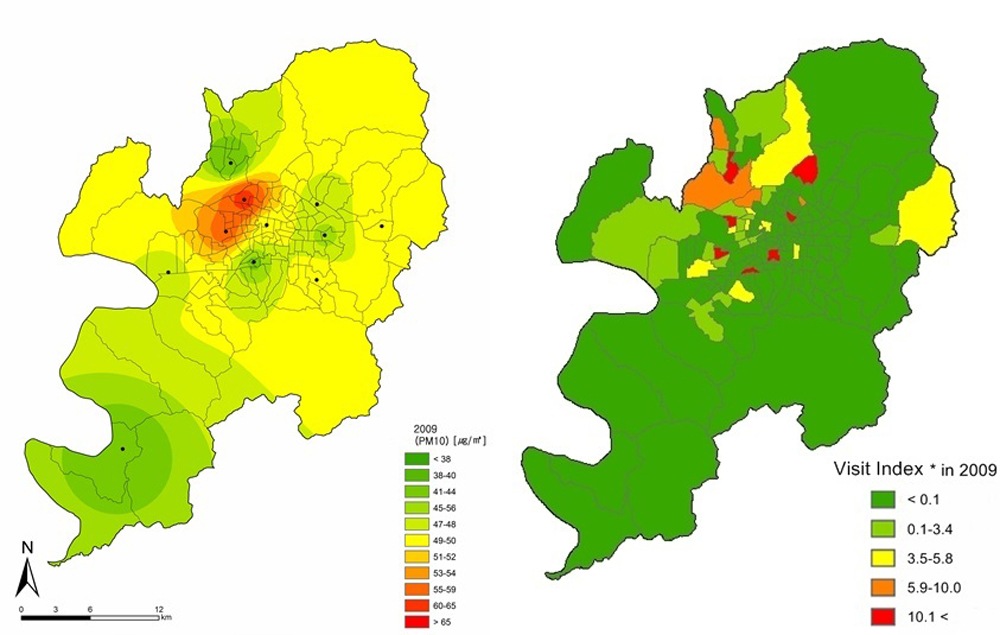

Figure S2. Spatial distribution of PM10 concentration and Visit Index of patients with conjunctivitis or keratitis in 2009. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000 (JPG 304 kb).
Additional file 3:

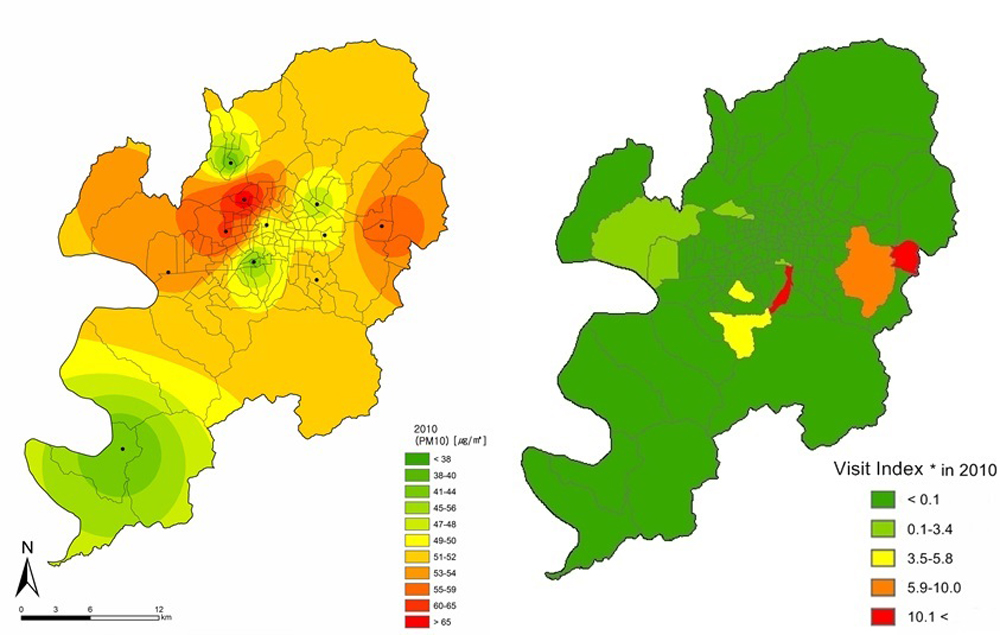

Figure S3. Spatial distribution of PM10 concentration and Visit Index of patients with conjunctivitis or keratitis in 2010. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000 (JPG 305 kb).
Additional file 4:

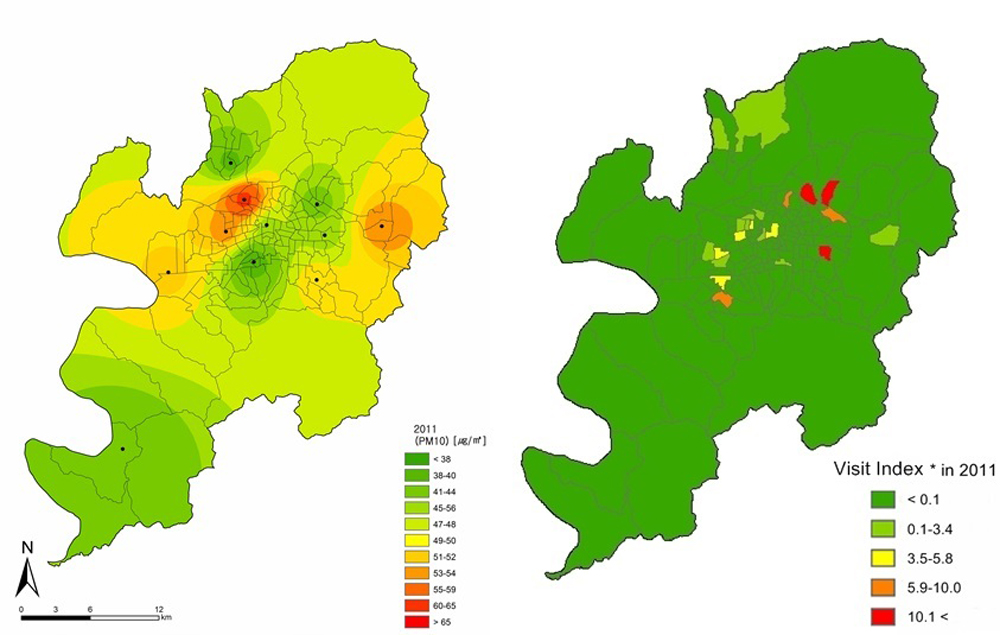

Figure S4. Spatial distribution of PM10 concentration and Visit Index of patients with conjunctivitis or keratitis in 2011. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000 (JPG 295 kb).
-
Electronic supplementary material
The online version of this article (10.1186/s40557-018-0252-x) contains supplementary material, which is available to authorized users.
Abbreviations
CO
Carbon monoxide
IDW
Inverse Distance Weighted
NO2
Nitrogen dioxide
O3
Ozone
PM
Particulate matter
SO2
Sulfur dioxide
Authors’ contributions
JYL (author) designed the study and carried out data analysis. JWK contributed acquisition of data and helped to analysis and interpretation of data. EJK and MYL designed and supervised process of spatial analysis. CWN and ISC conceived of the study, and participated in its design and coordination and helped to draft the manuscript. All authors read and approved the final manuscript.
This study has been approved by the IRB of Keimyung university Dongsan medical center. The approval number is DSMC 2016–10-003.
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
- 1. Ayres JG, et al. Evaluating the toxicity of airborne particulate matter and nanoparticles by measuring oxidative stress potential—a workshop report and consensus statement. Inhal Toxicol 2008;20(1):75–99. 10.1080/08958370701665517. 18236225.ArticlePubMed
- 2. Gehring U, et al. Exposure to air pollution and development of asthma and rhinoconjunctivitis throughout childhood and adolescence: a population-based birth cohort study. Lancet Respir Med 2015;3(12):933–942. 10.1016/S2213-2600(15)00426-9. 27057569.ArticlePubMed
- 3. Xu Q, et al. Fine particulate air pollution and hospital emergency room visits for respiratory disease in urban areas in Beijing, China, in 2013. PLoS One 2016;11(4):e0153099. 10.1371/journal.pone.0153099. 27054582.ArticlePubMedPMC
- 4.
- 5. Costello S, et al. Incident ischemic heart disease after long-term occupational exposure to fine particulate matter: accounting for 2 forms of survivor Bias. Am J Epidemiol 2016;183(9):861–868. 10.1093/aje/kwv218. 27033425.ArticlePubMedPMC
- 6. Qian X, et al. Relationship between particulate matters and cardio-cerebrovascular mortality in Ningbo: a time-series study. Zhonghua liu xing bing xue za zhi= Zhonghua liuxingbingxue zazhi 2016;37(6):841–845. 27346113.PubMed
- 7. Norn M. Pollution keratoconjunctivitis. A review. Acta Ophthalmol 1992;70(2):269–273. 10.1111/j.1755-3768.1992.tb04136.x. 1609579.
- 8. Huang F, et al. Particulate matter and hospital admissions for stroke in Beijing, China: modification effects by ambient temperature. J Am Heart Assoc 2016;5(7):e003437. 10.1161/JAHA.116.003437. 27413045.ArticlePubMedPMC
- 9. Ristovski ZD, et al. Respiratory health effects of diesel particulate matter. Respirology 2012;17(2):201–212. 10.1111/j.1440-1843.2011.02109.x. 22126432.ArticlePubMed
- 10. Harrison RM, Yin J. Particulate matter in the atmosphere: which particle properties are important for its effects on health? Sci Total Environ 2000;249(1–3):85–101. 10.1016/S0048-9697(99)00513-6. 10813449.ArticlePubMed
- 11. Pakbin P, et al. Spatial and temporal variability of coarse (PM10−2.5) particulate matter concentrations in the Los Angeles area. Aerosol Sci Technol 2010;44(7):514–525. 10.1080/02786821003749509.Article
- 12. Pope IC, et al. Lung cancer, cardiopulmonary mortality, and long-term exposure to fine particulate air pollution. JAMA 2002;287(9):1132–1141. 10.1001/jama.287.9.1132. 11879110.ArticlePubMedPMC
- 13. Ranft U, et al. Long-term exposure to traffic-related particulate matter impairs cognitive function in the elderly. Environ Res 2009;109(8):1004–1011. 10.1016/j.envres.2009.08.003. 19733348.ArticlePubMed
- 14. Jerrett M, et al. Spatial analysis of air pollution and mortality in Los Angeles. Epidemiology 2005;16(6):727–736. 10.1097/01.ede.0000181630.15826.7d. 16222161.ArticlePubMed
- 15. Chang C-J, et al. Relationship between air pollution and outpatient visits for nonspecific conjunctivitis. Invest Ophthalmol Vis Sci 2012;53(1):429–433. 10.1167/iovs.11-8253. 22205603.ArticlePubMed
- 16. Fu Q, et al. Airborne particulate matter (PM2.5) triggers autophagy in human corneal epithelial cell line. Environ Pollut 2017;227:314–322. 10.1016/j.envpol.2017.04.078. 28477555.ArticlePubMed
- 17. Sharma AP, et al. Ambient particulate matter (PM10) concentrations in major urban areas of Korea during 1996–2010. Atmos Pollut Res 2014;5(1):161–169. 10.5094/APR.2014.020.Article
- 18. Nguyen HT, Kim K-H. Evaluation of SO 2 pollution levels between four different types of air quality monitoring stations. Atmos Environ 2006;40(36):7066–7081. 10.1016/j.atmosenv.2006.06.011.Article
- 19. Shin SE, Jung CH, Kim YP. Analysis of the measurement difference for the PM10 concentrations between Beta-ray absorption and gravimetric methods at Gosan. Aerosol Air Qual Res 2011;11(7):846–853.Article
- 20. Webster R, Oliver MA. Geostatistics for environmental scientists. 2007, England: John Wiley & Sons.
- 21.
- 22. Szyszkowicz M, Kousha T, Castner J. Air pollution and emergency department visits for conjunctivitis: a case-crossover study. Int J Occup Med Environ Health 2016;29(3):381–393. 10.13075/ijomeh.1896.00442. 26988878.ArticlePubMed
- 23. Lennikov A, et al. Amelioration of ultraviolet-induced photokeratitis in mice treated with astaxanthin eye drops. Mol Vis 2012;18:455. 22393271.PubMedPMC
- 24. Roswell PR. Chemical injuries of the eye. Ophthalmology 1983;90(10):1246–1253. 10.1016/S0161-6420(83)34401-8. 6657201.ArticlePubMed
- 25. Bell ML, et al. Prenatal exposure to fine particulate matter and birth weight: variations by particulate constituents and sources. Epidemiology 2010;21(6):884–891. 10.1097/EDE.0b013e3181f2f405. 20811286.PubMedPMC
- 26. Hoek G, et al. Association between mortality and indicators of traffic-related air pollution in the Netherlands: a cohort study. Lancet 2002;360(9341):1203–1209. 10.1016/S0140-6736(02)11280-3. 12401246.ArticlePubMed
- 27. Peters A, Pope CA III. Cardiopulmonary mortality and air pollution. Lancet 2002;360(9341):1184–1185. 10.1016/S0140-6736(02)11289-X. 12401239.ArticlePubMed
- 28. Briggs DJ, et al. A regression-based method for mapping traffic-related air pollution: application and testing in four contrasting urban environments. Sci Total Environ 2000;253(1):151–167. 10.1016/S0048-9697(00)00429-0. 10843339.ArticlePubMed
- 29. Zhu Y, et al. Study of ultrafine particles near a major highway with heavy-duty diesel traffic. Atmos Environ 2002;36(27):4323–4335. 10.1016/S1352-2310(02)00354-0.Article
- 30. Jerrett M, et al. A GIS–environmental justice analysis of particulate air pollution in Hamilton, Canada. Environ Plan A 2001;33(6):955–973. 10.1068/a33137.ArticlePDF
- 31. Sacks JD, et al. Particulate matter–induced health effects: who is susceptible? Environ Health Perspect 2011;119(4):446–454. 10.1289/ehp.1002255. 20961824.ArticlePubMedPMC
- 32. Thomas D, Stram D, Dwyer J. Exposure measurement error: influence on exposure-disease relationships and methods of correction. Annu Rev Public Health 1993;14(1):69–93. 10.1146/annurev.pu.14.050193.000441. 8323607.ArticlePubMed
- 33. Patto NV, et al. Exposure to fine particulate matter and hospital admissions due to pneumonia: effects on the number of hospital admissions and its costs. Rev Assoc Med Bras 2016;62(4):342–346. 10.1590/1806-9282.62.04.342. 27437680.ArticlePubMed
- 34. Bae H-J. Effects of short-term exposure to PM10and PM2.5on mortality in Seoul. Korean Journal of Environmental Health Sciences 2014;40(5):346–354. 10.5668/JEHS.2014.40.5.346.Article
- 35. Gorai AK, Tchounwou PB, Tuluri F. Association between ambient air pollution and asthma prevalence in different population groups residing in eastern Texas, USA. Int J Environ Res Public Health 2016;13(4):378. 10.3390/ijerph13040378. 27043587.ArticlePubMedPMC
- 36. Mimura T, et al. Airborne particulate matter (PM2.5) and the prevalence of allergic conjunctivitis in Japan. Sci Total Environ 2014;487:493–499. 10.1016/j.scitotenv.2014.04.057. 24802272.ArticlePubMed
- 37. Hong J, et al. Ambient air pollution, weather changes, and outpatient visits for allergic conjunctivitis: a retrospective registry study. Sci Rep 2016;6:23858. 10.1038/srep23858. 27033635.ArticlePubMedPMCPDF
- 38. Tyc O, et al. The ecological role of volatile and soluble secondary metabolites produced by soil bacteria. Trends Microbiol 2017;25(4):280–292. 10.1016/j.tim.2016.12.002. 28038926.ArticlePubMed
- 39. Wolkoff P. Ocular discomfort by environmental and personal risk factors altering the precorneal tear film. Toxicol Lett 2010;199(3):203–212. 10.1016/j.toxlet.2010.09.001. 20833234.ArticlePubMed
- 40. Janssen NAH, et al. Personal sampling of particles in adults: relation among Personal, Indoor, and outdoor air concentrations. Am J Epidemiol 1998;147(6):537–547. 10.1093/oxfordjournals.aje.a009485. 9521180.ArticlePubMed
- 41. Woodland R, et al. Causes of conjunctivitis and keratoconjunctivitis in Karachi, Pakistan. Trans R Soc Trop Med Hyg 1992;86(3):317–320. 10.1016/0035-9203(92)90328-A. 1412664.ArticlePubMed
- 42. Wittenborn JS, et al. The economic burden of vision loss and eye disorders among the United States population younger than 40 years. Ophthalmology 2013;120(9):1728–1735. 10.1016/j.ophtha.2013.01.068. 23631946.ArticlePubMedPMC
- 43. Novaes P, et al. Ambient levels of air pollution induce goblet-cell hyperplasia in human conjunctival epithelium. Environ Health Perspect 2007;115(12):1753. 10.1289/ehp.10363. 18087595.ArticlePubMedPMC
- 44. Chen C, et al. Prevalence and relationship between allergic diseases and infectious diseases. Journal of microbiology, immunology, and infection= Wei mian yu gan ran za zhi 2001;34(1):57–62. 11321129.PubMed
- 45. Hahn YH, et al. Epidemiology of fungal keratitis in Korea: a multi-center study. Journal of the Korean Ophthalmological Society 2000;41(7):1499–1508.
- 46. Meyer-Rüsenberg B, et al. Epidemic Keratoconjunctivitis: the current situation and recommendations for prevention and treatment. Dtsch Arztebl Int 2011;108(27):475–480. 21814523.PubMedPMC
- 47. Chen C, Guo C. In: Li H, editor. Acute hemorrhagic conjunctivitis, in Radiology of infectious diseases: volume 1. 2015, Dordrecht: Springer Netherlands; 49–52.
References
Figure & Data
REFERENCES
Citations
Citations to this article as recorded by
- Consequences of exposure to particulate matter on the ocular surface: Mechanistic insights from cellular mechanisms to epidemiological findings
Phit Upaphong, Chanisa Thonusin, Ornpailin Wanichthanaolan, Nipon Chattipakorn, Siriporn C. Chattipakorn
Environmental Pollution.2024; 345: 123488. CrossRef - Mechanisms of PM10 Disruption of the Nrf2 Pathway in Cornea
Mallika Somayajulu, Farooq S. Muhammed, Robert Wright, Sharon A. McClellan, Linda D. Hazlett
International Journal of Molecular Sciences.2024; 25(7): 3754. CrossRef - Impact of Airborne Exposure to PM10 Increases Susceptibility to P. aeruginosa Infection
Sharon A. McClellan, Robert Wright, Farooq Muhammed, Linda D. Hazlett
International Journal of Environmental Research and Public Health.2024; 21(6): 722. CrossRef - Air Pollution and Meteorological Conditions Significantly Associated With Vernal Keratoconjunctivitis Exacerbations
Eran Levanon, Ido Peles, Michal Gordon, Lena Novack, Erez Tsumi
Investigative Opthalmology & Visual Science.2023; 64(10): 37. CrossRef - Clinical Impact of Ambient Particulate Matters on Dry Eye Disease
Chang Hwan Kim, Yong Woo Ji
Annals of Optometry and Contact Lens.2023; 22(4): 125. CrossRef - Airborne Exposure of the Cornea to PM10 Induces Oxidative Stress and Disrupts Nrf2 Mediated Anti-Oxidant Defenses
Mallika Somayajulu, Sharon A. McClellan, Robert Wright, Ahalya Pitchaikannu, Bridget Croniger, Kezhong Zhang, Linda D. Hazlett
International Journal of Molecular Sciences.2023; 24(4): 3911. CrossRef - Toxic External Exposure Leading to Ocular Surface Injury
Steven H. Rauchman, Brandon Locke, Jacqueline Albert, Joshua De Leon, Morgan R. Peltier, Allison B. Reiss
Vision.2023; 7(2): 32. CrossRef - PM10 and Pseudomonas aeruginosa: effects on corneal epithelium
Mallika Somayajulu, Sharon A. McClellan, Farooq Muhammed, Robert Wright, Linda D. Hazlett
Frontiers in Cellular and Infection Microbiology.2023;[Epub] CrossRef - The effect of social determinants of health on severity of microbial keratitis presentation at a tertiary eye care hospital in Southern India
Anvesh Annadanam, Patrice M Hicks, Ming-Chen Lu, Mercy Pawar, Prabhleen Kochar, Suvitha Selvaraj, Dhanya Kuppuraj, Chetan Rathod, Rekha Sravya Muppala, Smriti Gaur, Abinaya Krishnan, SR Sumithra, Maria A Woodward, N Venkatesh Prajna
Indian Journal of Ophthalmology.2023; 71(6): 2448. CrossRef - Impacts of Climate Change on Ocular Health: A Scoping Review
Yee Ling Wong, Shiao Wei Wong, Darren S.J. Ting, Alankrita Muralidhar, Sagnik Sen, Olivia Schaff, Hannah Istre-Wilz, Barbara Erny
The Journal of Climate Change and Health.2023; : 100296. CrossRef - Association between air pollution and emergency room visits for eye diseases and effect modification by temperature in Beijing, China
Wanzhou Wang, Wenlou Zhang, Hongxia Ge, Baiqi Chen, Jingjing Zhao, Jun Wu, Zefeng Kang, Xinbiao Guo, Furong Deng, Qingbian Ma
Environmental Science and Pollution Research.2022; 29(15): 22613. CrossRef - Correlation between Exposure to Fine Particulate Matter (PM2.5) during Pregnancy and Congenital Anomalies: Its Surgical Perspectives
Eun-jung Koo, Jin-Gon Bae, Eun Jung Kim, Yong-Hoon Cho
Journal of Korean Medical Science.2021;[Epub] CrossRef - The burden of acute conjunctivitis attributable to ambient particulate matter pollution in Singapore and its exacerbation during South-East Asian haze episodes
Joel Aik, Rae Chua, Natasha Jamali, Elaine Chee
Science of The Total Environment.2020; 740: 140129. CrossRef - Epidemiological aspects of allergic conjunctivitis
Dai Miyazaki, Kazumi Fukagawa, Shigeki Okamoto, Atsuki Fukushima, Eiichi Uchio, Nobuyuki Ebihara, Jun Shoji, Kenichi Namba, Yumiko Shimizu
Allergology International.2020; 69(4): 487. CrossRef - Dry eye symptoms in offices and deteriorated work performance – A perspective
Peder Wolkoff
Building and Environment.2020; 172: 106704. CrossRef - Airborne Particulates Affect Corneal Homeostasis and Immunity
Mallika Somayajulu, Sandamali Ekanayaka, Sharon A. McClellan, Denise Bessert, Ahalya Pitchaikannu, Kezhong Zhang, Linda D. Hazlett
Investigative Opthalmology & Visual Science.2020; 61(4): 23. CrossRef - Air pollution significantly associated with severe ocular allergic inflammatory diseases
Dai Miyazaki, Kazumi Fukagawa, Atsuki Fukushima, Hiroshi Fujishima, Eiichi Uchio, Nobuyuki Ebihara, Jun Shoji, Etsuko Takamura, Kenichi Namba, Yuichi Ohashi, Shigeki Okamoto, Yoshiyuki Satake, Hiroshi Ohtsu, Yumiko Shimizu, Yoshitsugu Inoue
Scientific Reports.2019;[Epub] CrossRef - Global Associations of Air Pollution and Conjunctivitis Diseases: A Systematic Review and Meta-Analysis
Renchao Chen, Jun Yang, Chunlin Zhang, Bixia Li, Stéphanie Bergmann, Fangfang Zeng, Hao Wang, Boguang Wang
International Journal of Environmental Research and Public Health.2019; 16(19): 3652. CrossRef
PubReader
ePub Link
Cite
XML DownloadSpatial analysis between particulate matter and emergency room visits for conjunctivitis and keratitis

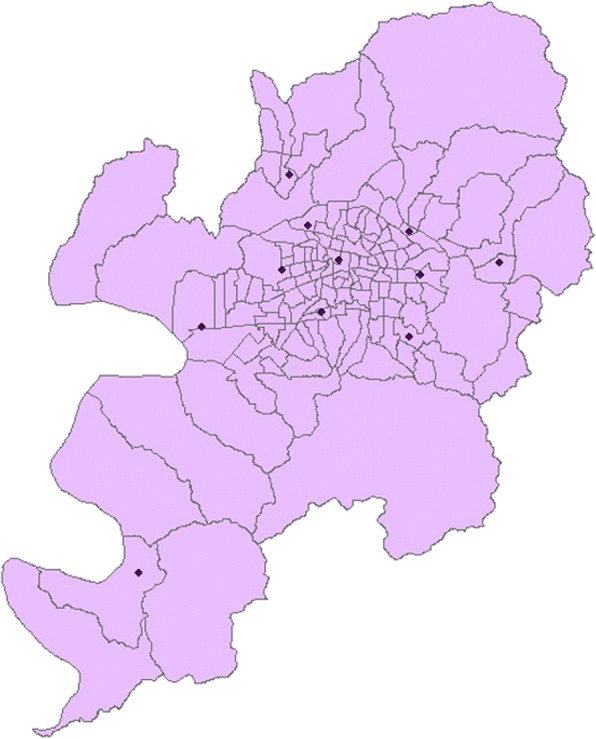

Fig. 1 Location of air monitoring stations in each region

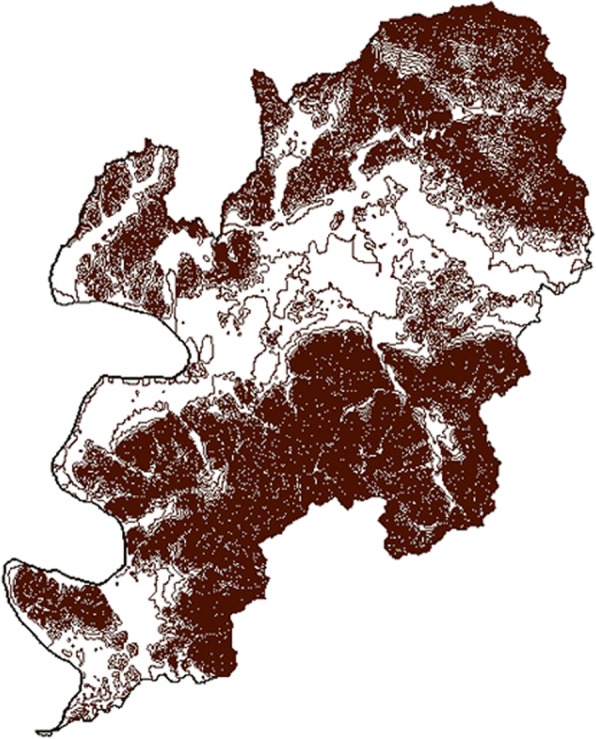

Fig. 2 Polyline of Daegu’s contour line

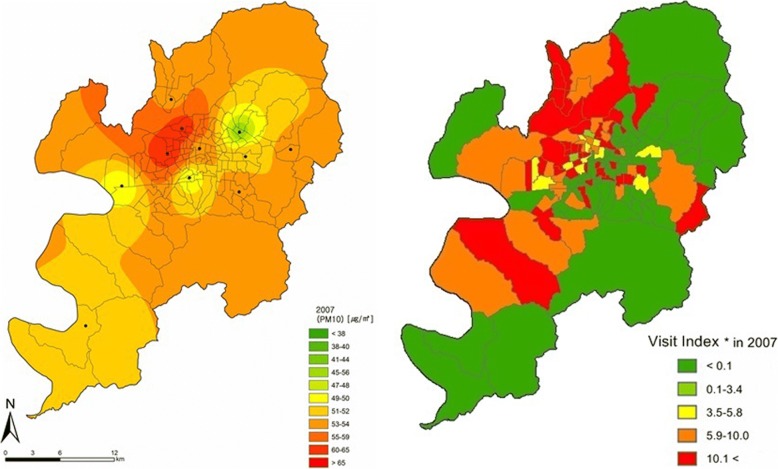

Fig. 3 Spatial distribution of PM10 concentration and Visit Index of patients with conjunctivitis or keratitis in 2007. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000

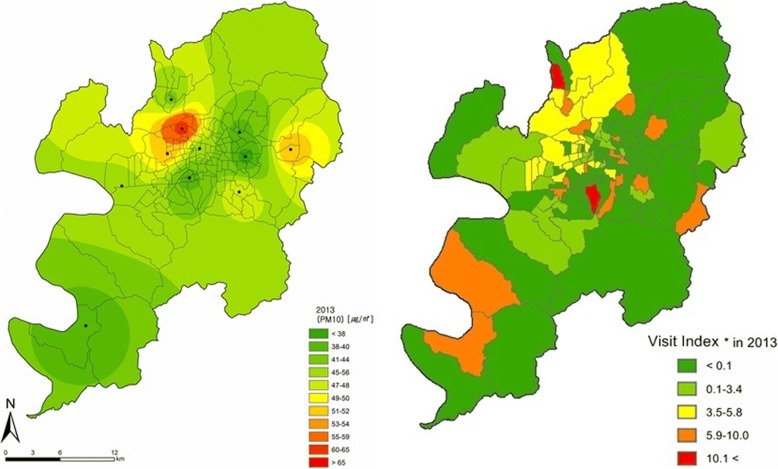

Fig. 4 Spatial distribution of PM10 concentration and Visit Index of patients with conjunctivitis or keratitis in 2013. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000
Fig. 5 Dose-response relationship between PM10 concentration and Visit Index of patients with conjunctivitis from January, 2006 to December, 2014. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000. *: Pearson’s correlation coefficient; **: statistical analysis by Pearson’s correlation analysis
Fig. 6 Dose-response relationship between PM10 concentration and Visit Index of patients with keratitis from January, 2006 to December, 2014. Visit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000. *: Pearson’s correlation coefficient; **: statistical analysis by Pearson’s correlation analysis
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Spatial analysis between particulate matter and emergency room visits for conjunctivitis and keratitis
| Variables | Number (%) |
|---|---|
| Total | 769 (100.0) |
| Conjunctivitis | 191 (24.8) |
| Keratitis | 578 (75.2) |
| Sex | |
| Male | 494 (64.2) |
| Female | 275 (35.8) |
| Age (years) | |
| < 20 | 157 (20.4) |
| 20–40 | 266 (34.6) |
| 40–60 | 268 (34.9) |
| 60–80 | 75 (9.8) |
| ≥ 80 | 3 (0.4) |
| Address (district) | |
| Nam-gu | 26 (3.4) |
| Dalseo-gu | 163 (21.2) |
| Dalsung-goon | 31 (4.0) |
| Dong-gu | 24 (3.1) |
| Book-gu | 205 (26.7) |
| Seo-gu | 236 (30.7) |
| Suseong-gu | 44 (5.7) |
| Joong-gu | 40 (5.2) |
| Total visitors (denominator) | 282,017 |
| Min | Max | Mean | SD | |
|---|---|---|---|---|
| PM10 (μg/m3) | 27 | 86 | 48 | 11.92 |
| SO2 (ppm) | 0.002 | 0.010 | 0.005 | 0.002 |
| NO2 (ppm) | 0.011 | 0.038 | 0.024 | 0.007 |
| O3 (ppm) | 0.009 | 0.046 | 0.024 | 0.009 |
| CO (ppm) | 0.3 | 0.9 | 0.5 | 0.133 |
| Visit Indexa | p value | |||
|---|---|---|---|---|
| Mean | SD | |||
| Conjunctivitis | PM10 top 20% districts | 0.8 | 0.5 | < 0.01 |
| PM10 bottom 20% districts | 0.3 | 0.7 | ||
| Keratitis | PM10 top 20% districts | 2.4 | 0.9 | < 0.05fIn multiple regression |
| PM10 bottom 20% districts | 1.4 | 1.7 | ||
| Unadjusted | Adjustedc | |||
|---|---|---|---|---|
| Coefficient | 95% CI | Coefficient | 95% CI | |
| Conjunctivitis | 0.040a | 0.005–0.074 | 0.044a | 0.001–0.088 |
| Keratitis | 0.089a | 0.016–0.163 | 0.104a | 0.010–0.198 |
Table 1 General characteristics of study subjects
Table 2 Monthly average PM10, other air pollutant concentrations from June, 2006 to December, 2014
Table 3 Conjunctivitis or keratitis patients number differences between districts which stand for PM10 top 20% levels and districts which stand for PM10 bottom 20% levels from June, 2006 to December, 2014
aVisit Index – number of patients with conjunctivitis or keratitis / number of all patients × 1000
Table 4 Linear regression analysis of the relationship between PM10 concentration and Visit Indexb
a
bVisit Index – number of patients with conjuctivitis or keratitis / number of all patients × 1000
cAdjusted for SO2, NO2, O3 and CO
